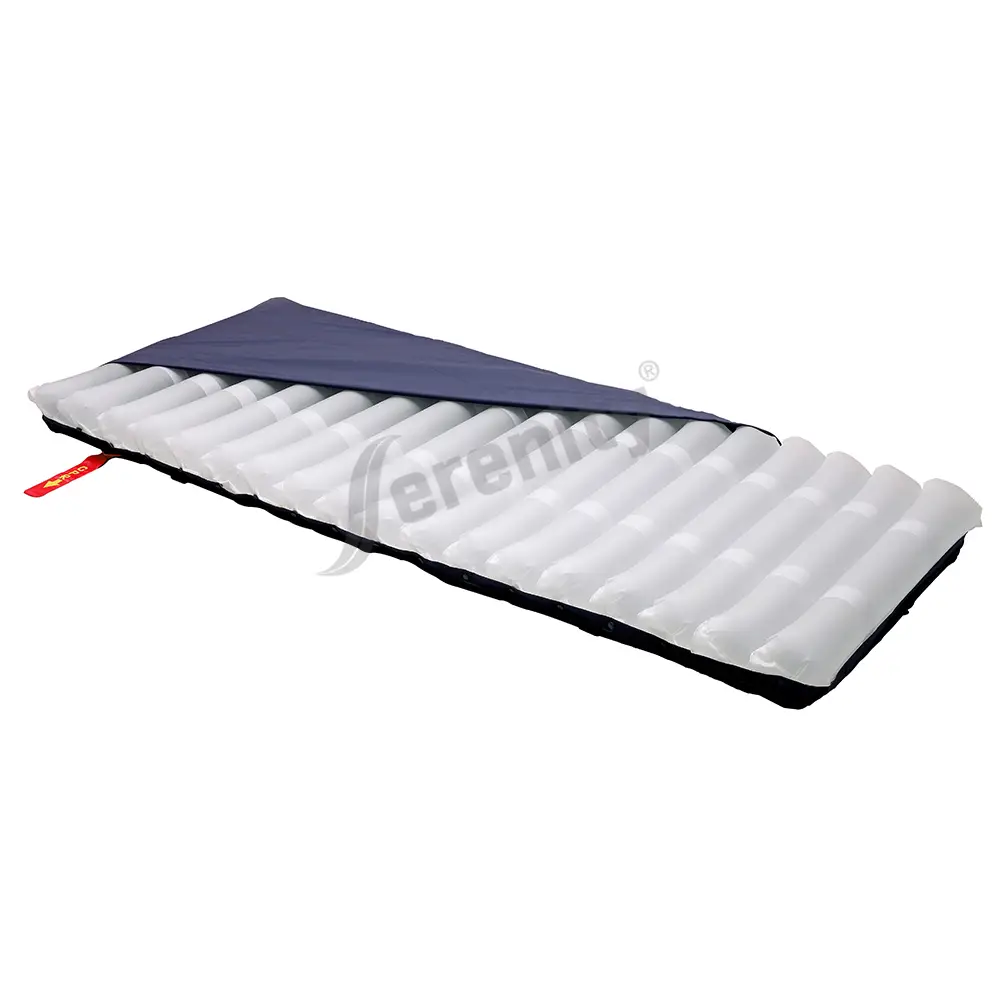

Alternating Pressure Pump & Mattress 5600
Pump comes with static mode for quick access on air cells inated & deated process, low/normal
pressure identication light, & adjustable knob for setting comfortable pressure level.
• Fixed attachment hook fo easy tting to the bed & air lter.
• Built in alarm to warn user of abnormal pressure.
• Waterproof TOP COVER, vapor permeable cover provides a low friction surcafe.
• CPR features “Quick Air Release” in emergency situation.
• Matters come with changeable Air Cell witch easy to replace & clean.
• Come with “Quick connector” to facilitate the setup proccess.
EFFECT 5600 is designed to treat & prevent patient’s bedsore during recovery stage I, II & III*. It commonly
used in hospital, nursering homes & rehabilitation center for long term care.
Pump Technical Specifications:
Model No. : Taurus III
Power supply : 220V/50Hz, 1A
Air output : 7~8 Liter/min.
Pressure range : 40 mmHg °V 100 mmHg (±10)
Cycle time : 10~12 min.
Size : 28cm(L) x 20cm(W) x 10cm(H)
Weight : 2.2 kg
Control panel : : Static mode, alarm reset mode,
normal/low pressure light
Mattress Technical Specifications:
Size : 200cm(L) x 86.5cm(W) x 12.5cm(H)
Material : Nylon/pu with zipper
Air cell material : TPU
Base material : Nylon / PVC
Number of cells : 17
Max user weight : 160kg
Other features : CPR valve, quick connector,
