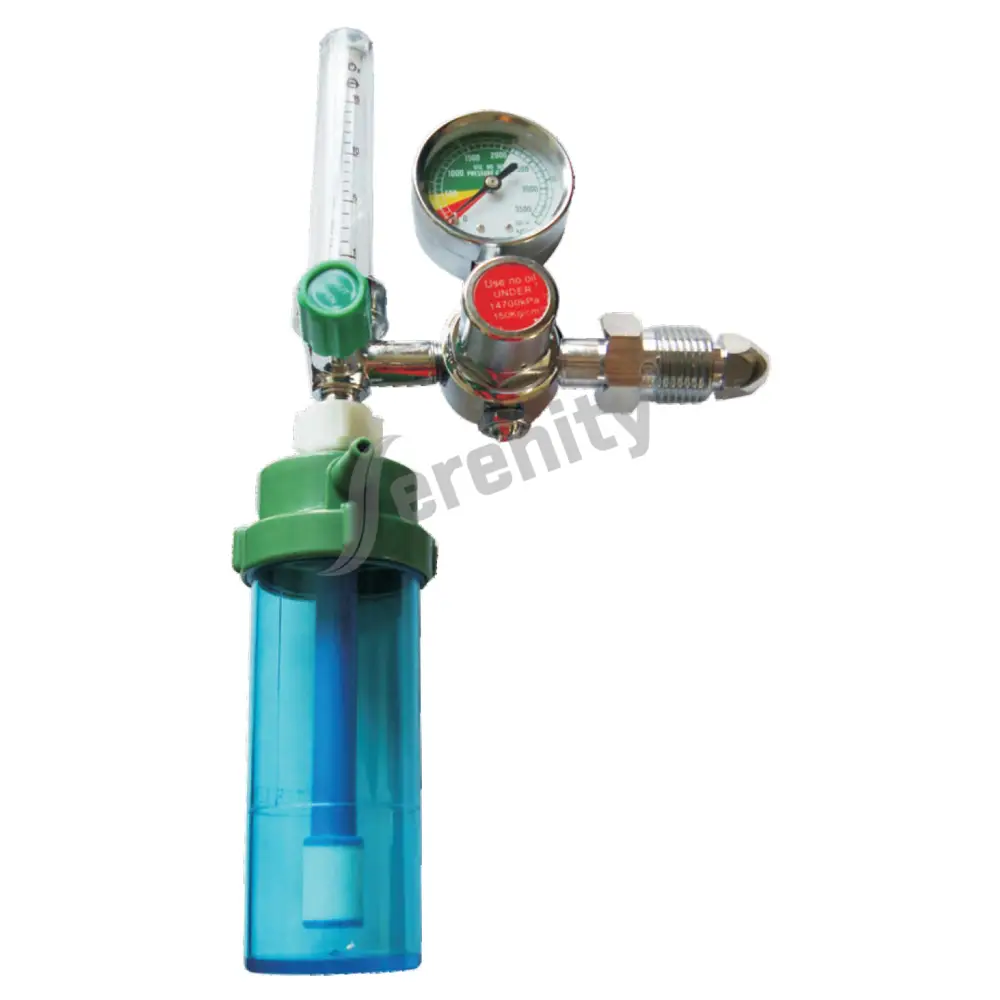

Medical Oxygen Regulator YF86A
• All series have passed the CE certification.
• The main part uses the goodness copper, & cut withprecision digitally controlled lathe.
• Lengthening air inlet valve lever, fit for the different capacity of oxygen cylinder.
• Integrated casting flowmeter.
• Flow tube, wet cup of high-strength polycarbonate plastic body.
• High temperature high-pressure sterilizer humidifier body, to meet European standards for B-level disinfection. The maximum temperature of 121°C pressure 0.142MPa.
• Polymer high-density lter, wed-based uniform.
Input pressure : 15 MPa
Output pressure : 0.2 – 0.3 MPa
Safety valve : 0.35±0.05 MPa
Flow rate : 1-10 l/min, 1-15 l/min
Connecting thread : G 5/8, CGA540, male G 5/8, DIN477 & CGA870
